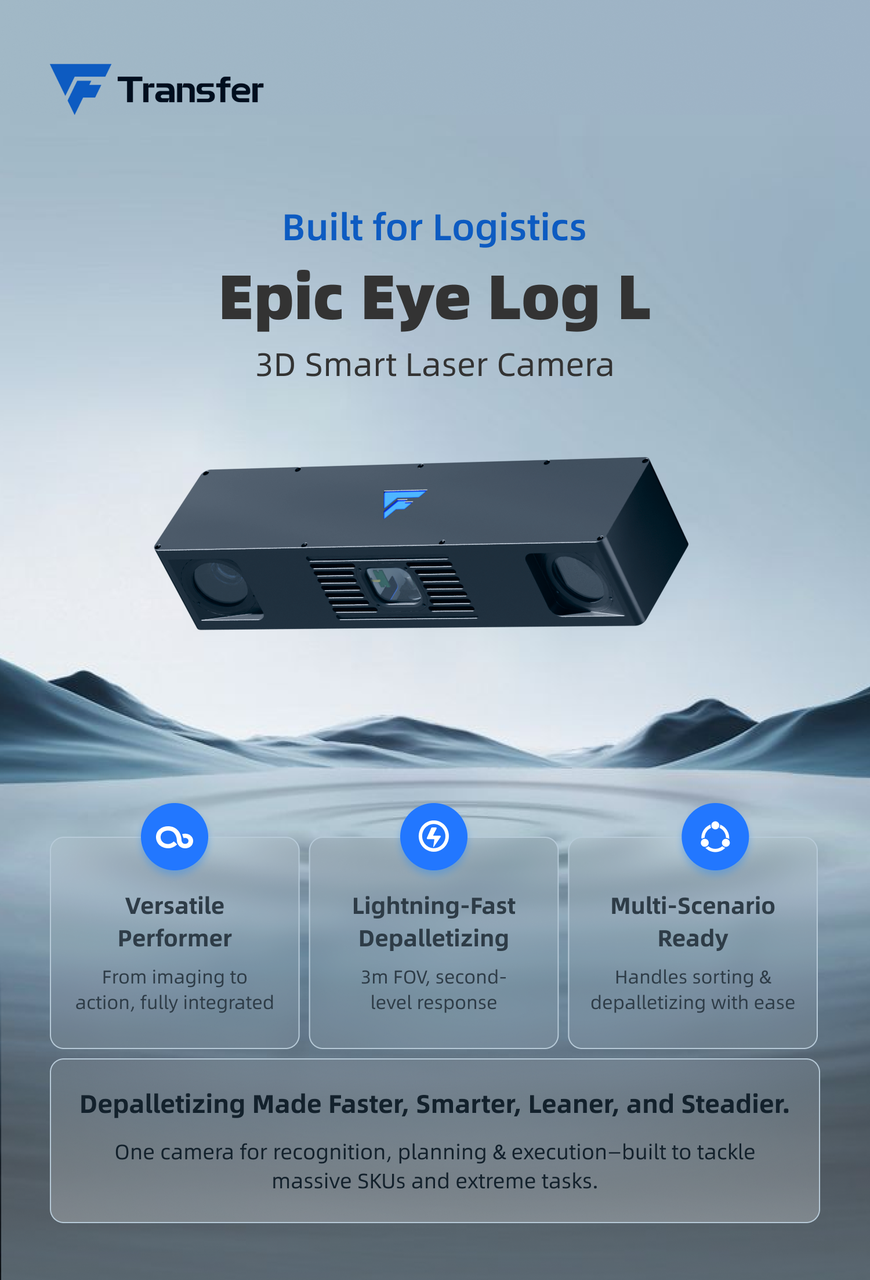

Multi-Purpose, Lightning-Fast Depalletizing in One Device! Transfer Technology has officially launched the Epic Eye Log L—a 3D smart laser camera tailored for logistics and powered by AI + 3D vision. By deeply integrating hardware, algorithms, and application scenarios, it delivers a highly efficient solution for logistics industry that cuts costs, saves space, and ensures rapid deployment. It effortlessly handles extreme requirements such as over-3-meter field of view, sub-millimeter accuracy, and instant response, enabling logistics enterprises to accelerate intelligent transformation.
All-in-One Design That Meets Logistics Demands
Integrated Design to Meet Common Logistics Needs

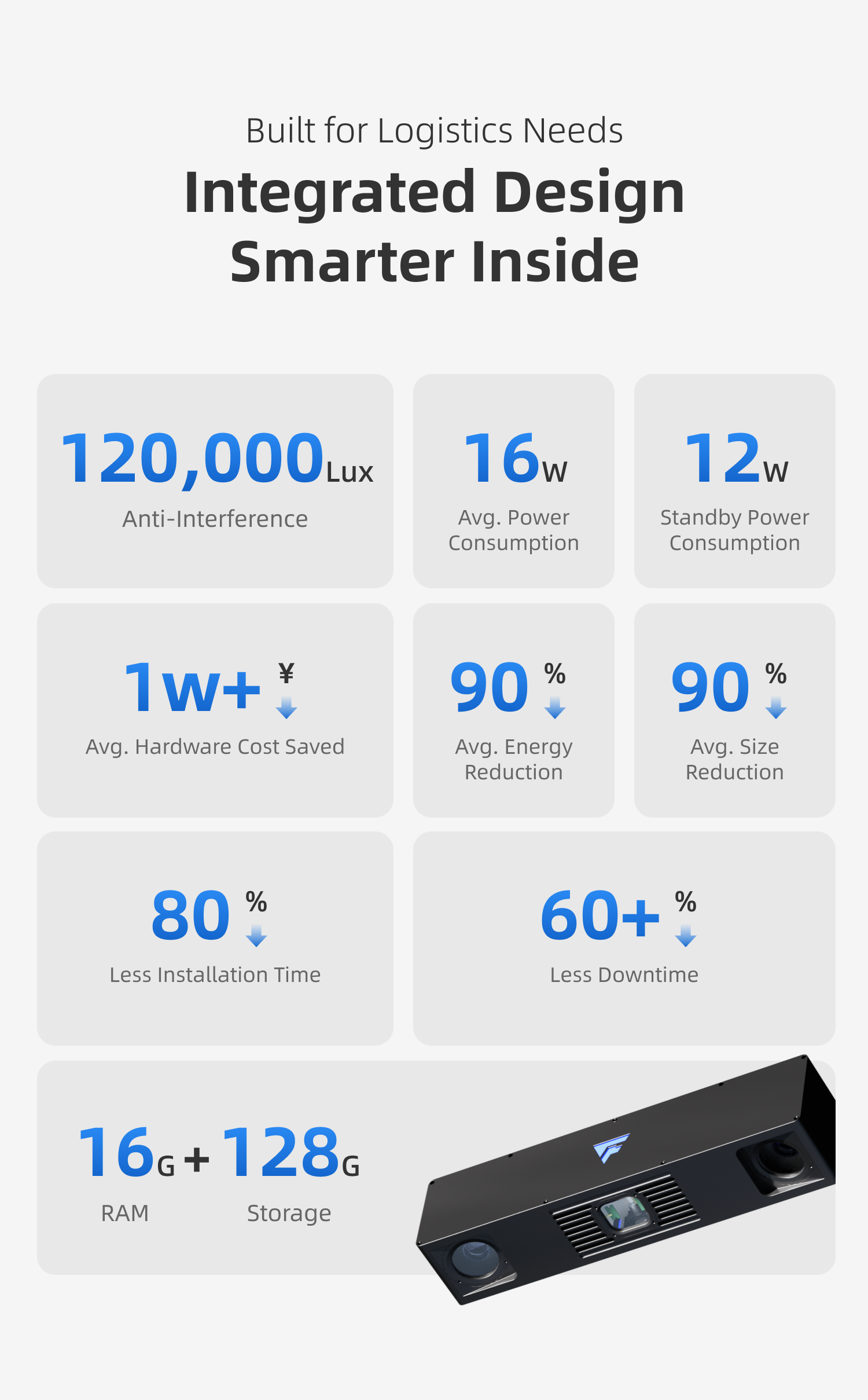

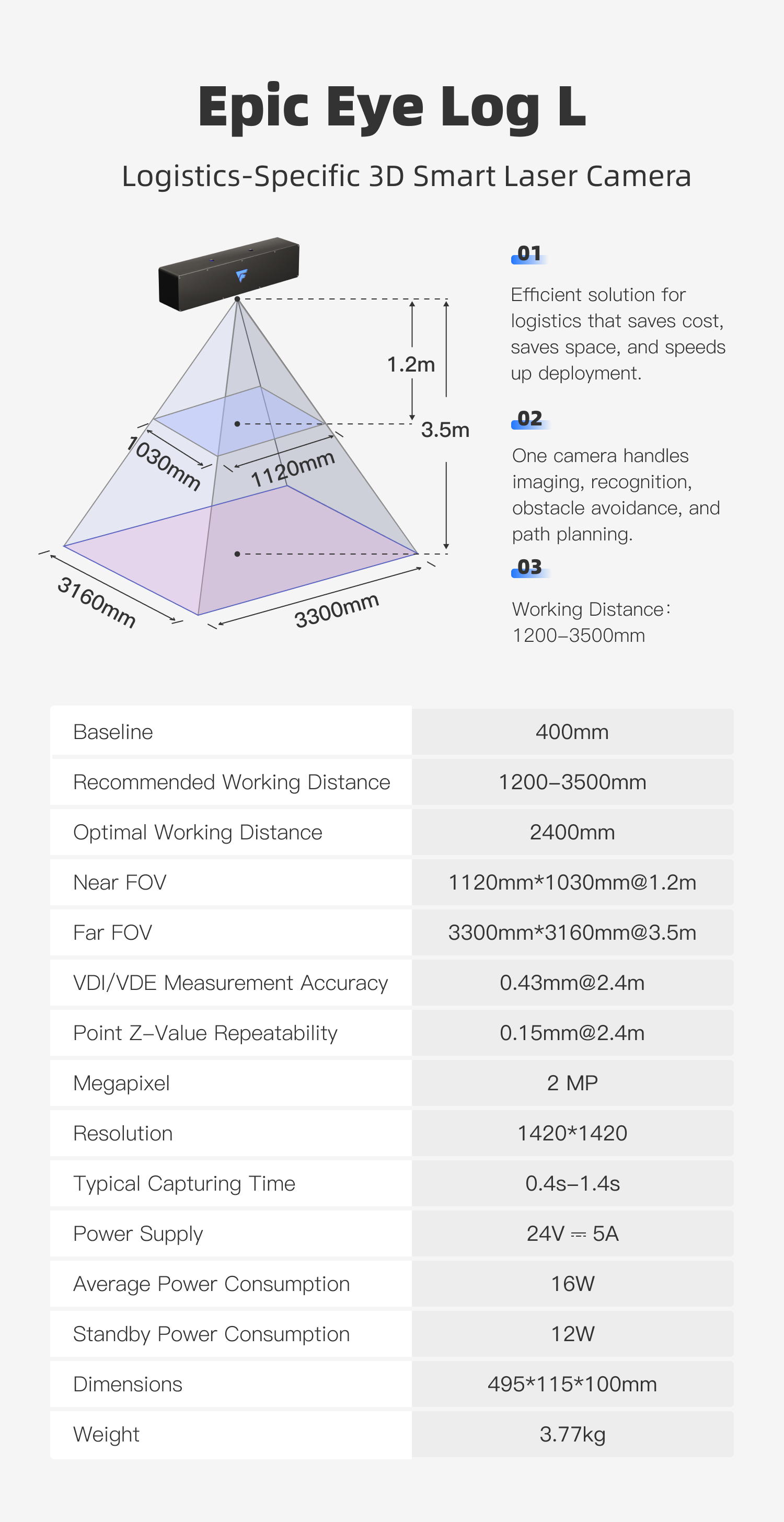

Epic Eye Log L not only builds on the proven strengths of Transfer Technology’s Laser series, such as resistance to 120,000 Lux ambient light, Z-axis accuracy of 0.15 mm at 2.4 m, and 0.4 s image capture time, but also takes a major leap in hardware architecture. Unlike conventional setups requiring a camera, IPC, and GPU, this device integrates 16 GB RAM, 128 GB storage, the full Epic Pro vision software, and the ATOM algorithm platform—all inside one compact unit. This true all-in-one system enables end-to-end processing from imaging and recognition to obstacle avoidance and path planning. This groundbreaking design brings three key advantages:
Cost-Saving:
The camera eliminates the need for external equipment such as IPCs, GPUs, switches, and cabinets, cutting hardware procurement costs by over ¥10,000. With a low-power design, it reduces energy consumption by 90% compared to traditional setups, making it significantly more energy-efficient and eco-friendly.
- Thanks to its compact and refined form factor, the camera removes the need for IPCs and cabinets, with no extra wiring or mounting space required. The volume reduced by 90% compared to traditional solution, greatly enhancing production line compactness and space utilization.
Space-Saving:
Time-Saving:
The camera supports direct connection to robots — communicating via Ethernet and powered by the robot through a single cable, reducing installation time to just one-fifth of traditional systems. Its fast fault recovery mechanism shortens downtime by over 80%, ensuring continuous logistics operations.
In addition, with IP65-rated dust and water protection, an integrated hardware-software architecture, and multiple redundancy mechanisms, the Epic Eye Log L delivers reliability far beyond industry standards.

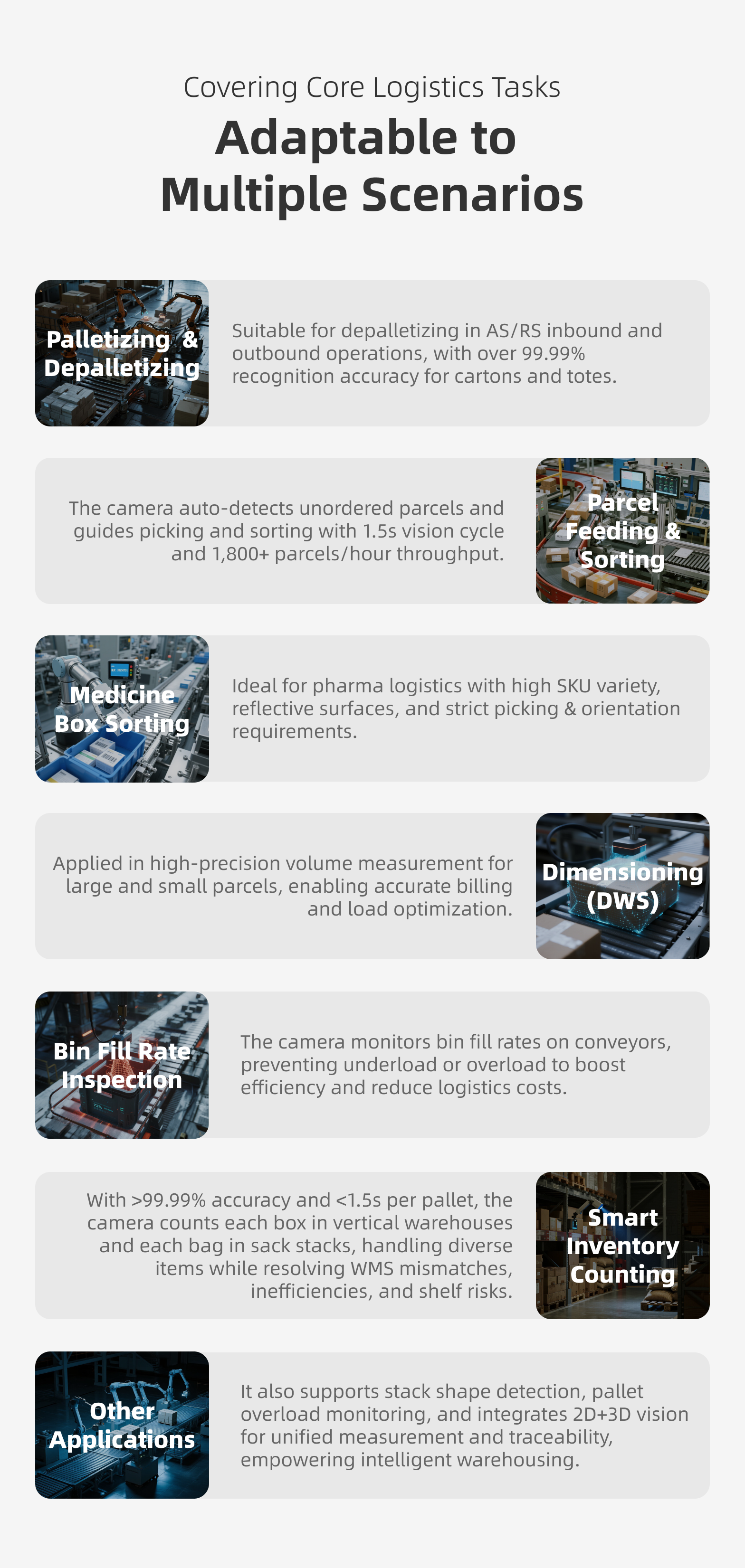

Multi-Scenario Adaptation
Covering Core Logistics Processes
Epic Eye Log L tackles logistics pain points with powerful adaptability across diverse complex scenarios. From depalletizing and intelligent sorting to dimensioning and smart inventory, it delivers complete 3D vision solutions:
Depalletizing & Palletizing
The camera guides both inbound and outbound depalletizing in AS/RS systems, achieving over 99.99% recognition accuracy for cartons, sacks, totes, and barrels. With a vision cycle time of only 1.5 seconds for cartons and sacks, it enables robotic depalletizing of 700–900 items per hour, boosting efficiency by 6× compared to manual handling.
Parcel Feeding & Sorting
It generates high-quality point clouds for unordered cartons, foam boxes, and courier bags. With automated model matching, it accurately identifies targets and guides picking, achieving a vision cycle time of just 1.5 seconds and sorting over 1,800 parcels per hour.
Medicine Box Sorting
Ideal for pharmaceutical warehouses and distribution centers, the camera accurately handles diverse medicine boxes—even those with reflective packaging, designated picking surfaces, or strict orientation requirements.
Dimensioning (DWS)
For logistics scenarios such as volume-based billing and load optimization, the camera delivers high-precision dimensioning for both large and small packages. It is well-suited for express, freight, and cross-border logistics, providing essential data to optimize transport and warehousing efficiency.
Bin Fill Rate Inspection
It inspects bin fill rates directly on the conveyor line, helping prevent underloading or overloading, improving bin utilization, and reducing circulation costs.
Smart Inventory Counting
The camera enables automated inventory counting—down to each box in vertical warehouses and each bag in stacked sack scenarios—with >99.99% accuracy and <1.5s per pallet. It handles diverse cartons and sacks to eliminate WMS mismatches, improve efficiency, and reduce shelf-related risks.
Additional capabilities include stack shape detection, pallet overload monitoring, 3D point cloud-based spatial measurement, and 2D image-based task tracing, delivering full-spectrum visual support for intelligent warehousing.
Fast Deployment
Easy Integration
Epic Eye Log L comes equipped with Transfer Technology’s self-developed Epic Pro software and the ATOM algorithm platform. With flexible operator combinations on ATOM, it supports highly customizable solutions tailored to diverse logistics needs. It is fully compatible with Windows, Ubuntu, and cloud servers, and supports scalable data storage beyond traditional IPC limitations. Paired with a streamlined deployment process, the system can be brought online in a short time, helping businesses start fast and scale with ease.
