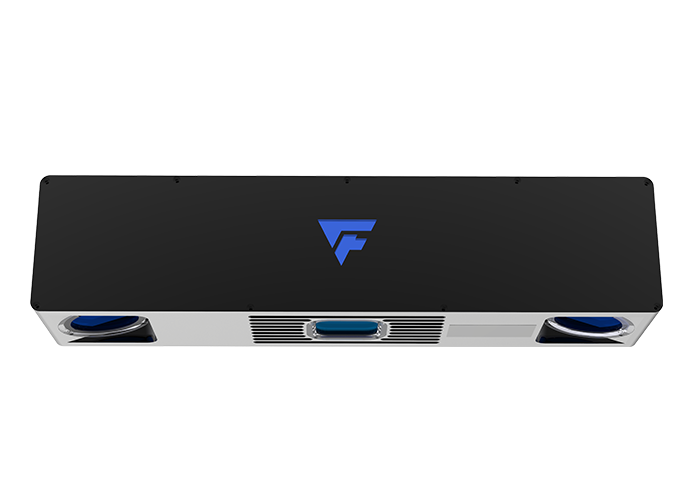

Epic Eye Laser L

Epic Eye Laser L

Laser galvo binocular structured light industrial 3D camera

Functional advantages :
The Epic Eye Laser L offers light interference resistance up to 120,000 Lux, enabling clear imaging even under direct sunlight. With a working range of 1200–3000 mm, it is ideal for a wide range of industrial applications, including pick-and-place, machine tending, assembly, palletizing and depalletizing.


  • Epic Eye Laser L
Technical Support

Driven by Powerful Technology to Serve Our Customers

Epic Eye Laser L Datasheet

Data Sheet

Building Industrial-Grade Standardized Products

Baseline /mm
400
Optimal Working Distance /mm
1200-3000
Near FOV /mm
1260x1240@1.2m
Far FOV /mm
3220x2950@3.0m
Megapixels
3 MP
Precision /mm
0.32@2.4m
Accuracy error
<0.15%
Typical Imaging Time
0.9s~2.4s
Power Supply
24V/5A
Dimensions /mm
495 x 115 x 100
Communication interface
Ethernet
Light Source
Blue (450nm) laser
2D camera
Black and white
Operating Temperature
-10~45℃
Operating Humidity
20% to 90%RH Non-condensing
Storage
-20~70℃, 20%~90%RH no condensation
IP Rate
IP65
Cooling
passivity

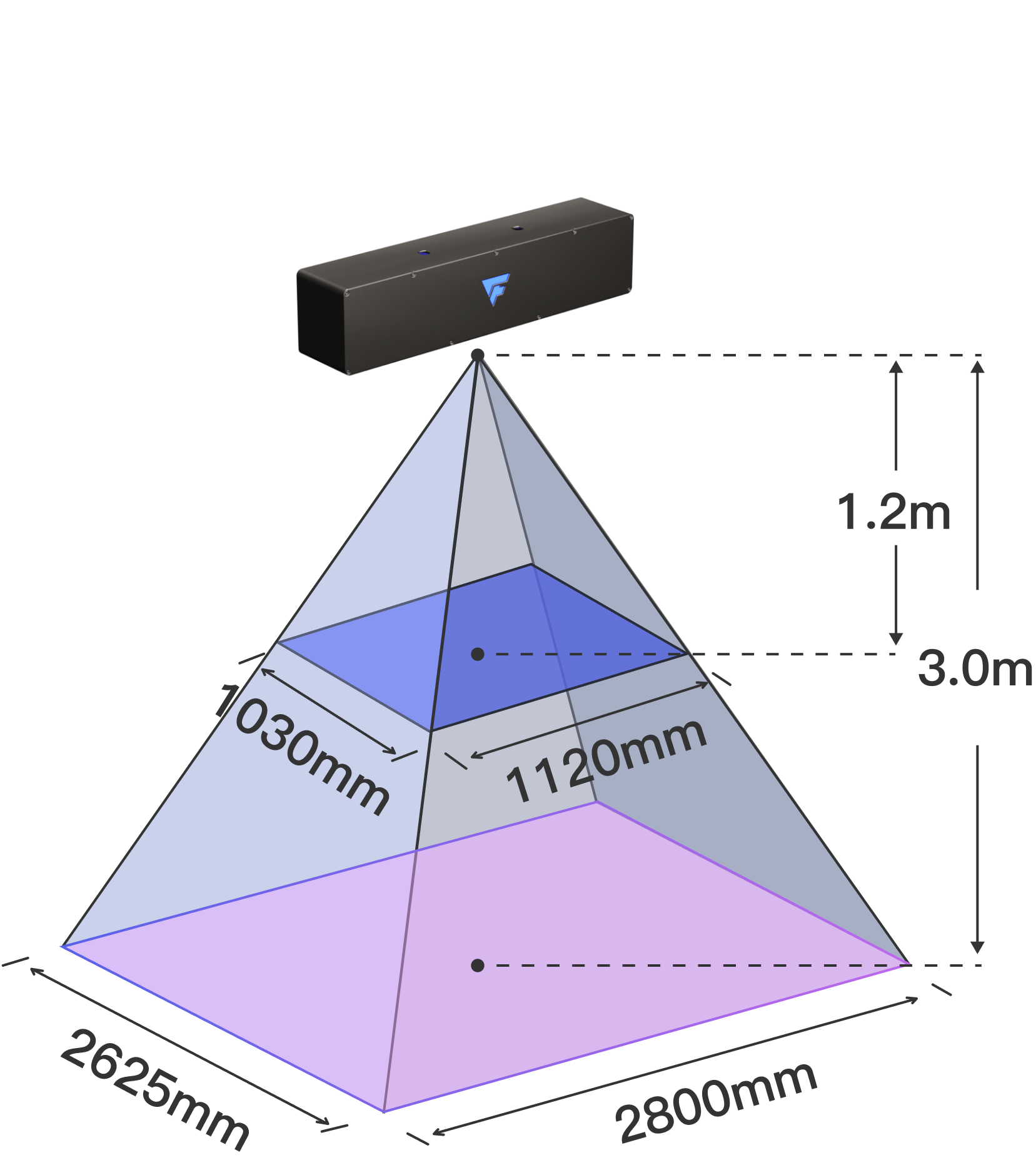

COV

Cone of vision (mm)

Solutions

Empowering Automation in Global

Industrial Manufacturing and Warehousing Logistics

  • Depalletizing
    Depalletizing

    Applicable Scenarios: Inbound depalletizing; outbound depalletizing; parcel sorting

    Learn more

  • Assembly
    Assembly

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more

  • Machine Tending
    Machine Tending

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more

  • Bin Picking
    Bin Picking

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more
