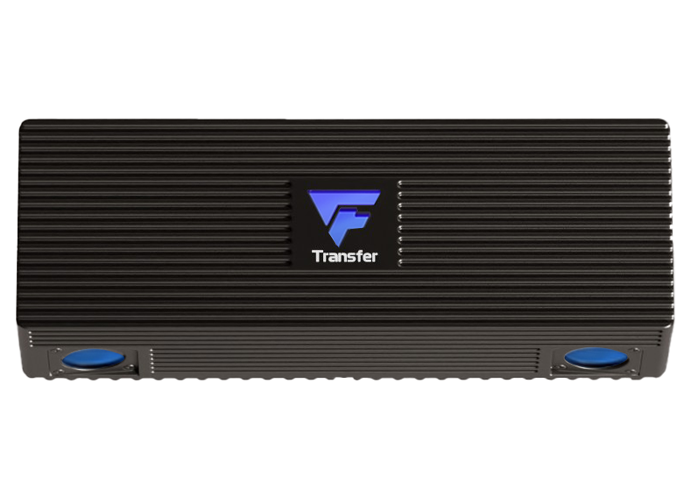

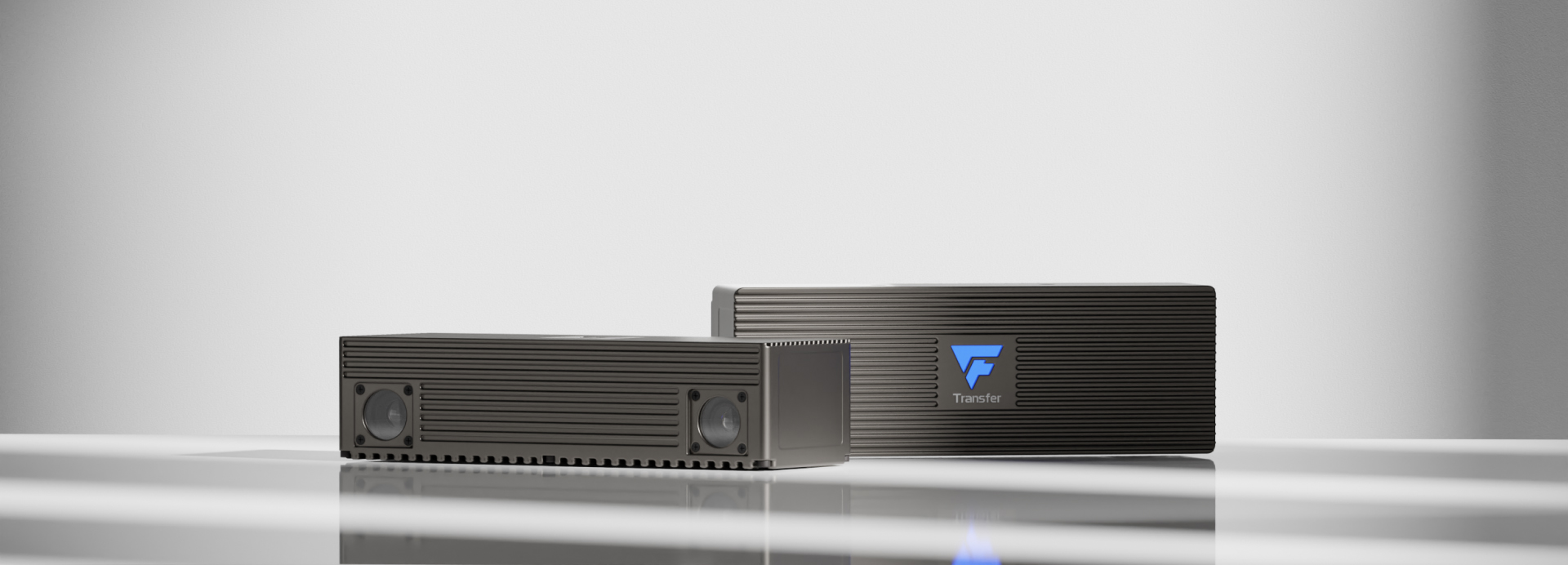

Epic Eye Pixel Pro

Epic Eye Pixel Pro

Monocular structured light industrial 3D camera

Functional advantages :
The Pixel Pro offers a wide FOV, with working distance range of 600–1500 mm and FOV reaching 1400mm*857mm@1.5m. This is the largest FOV among similar products with the same working range, enabling it to support a broader range of applications. For customers, this means enhanced flexibility and adaptability.


  • Epic Eye Pixel Pro
Technical Support

Powerful technology as the driving force for customer service

Pixel Pro Datasheet

Data Sheet

Building Industrial-Grade Standardized Products

Baseline /mm
170
Optimal Working Distance /mm
600-1500
Near FOV /mm
575x350@0.6m
Far FOV /mm
1410x860@1.5m
Megapixels
2.3MP
Precision /mm
0.1mm@1.1m
Accuracy error
<0.15%
Typical Imaging Time
0.2s~0.7s
Power Supply
24V/3.75A
Dimensions /mm
219 x 75 x 53
Communication Interface
Ethernet
Light Source
LED
2D camera
Black and white
Operating Temperature
-10~45℃
Operating Humidity
20% to 90%RH Non-condensing
Storage
-20~70℃, 20%~90%RH no condensation
IP Rate
IP65
Cooling
passivity
COV

Cone of vision (mm)

Solutions

Empowering Automation in Global

Industrial Manufacturing and Warehousing Logistics

  • Depalletizing
    Depalletizing

    Applicable Scenarios: Inbound depalletizing; outbound depalletizing; parcel sorting

    Learn more

  • Assembly
    Assembly

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more

  • Machine Tending
    Machine Tending

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more

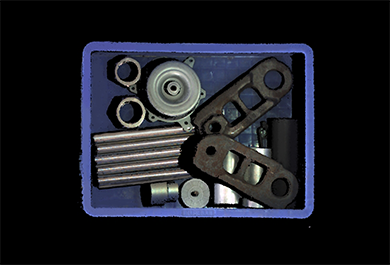

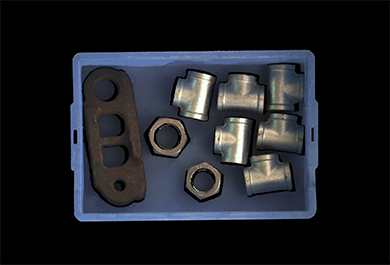

  • Bin Picking
    Bin Picking

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more
