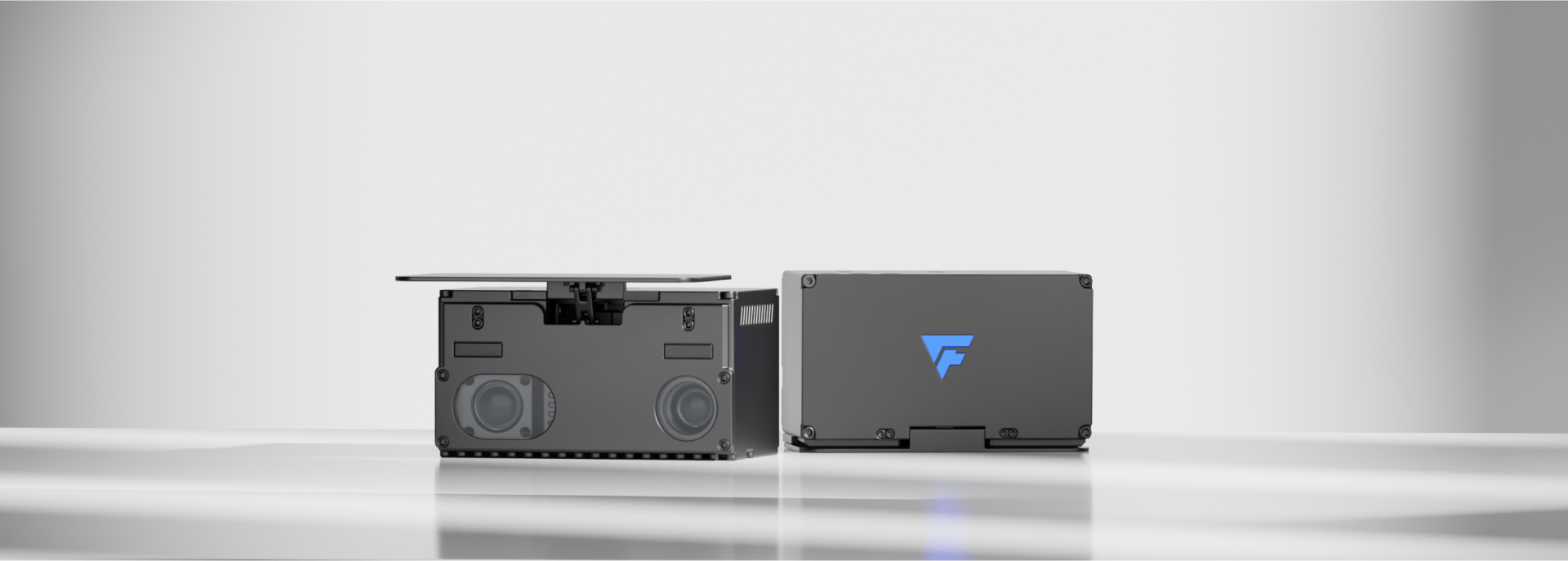

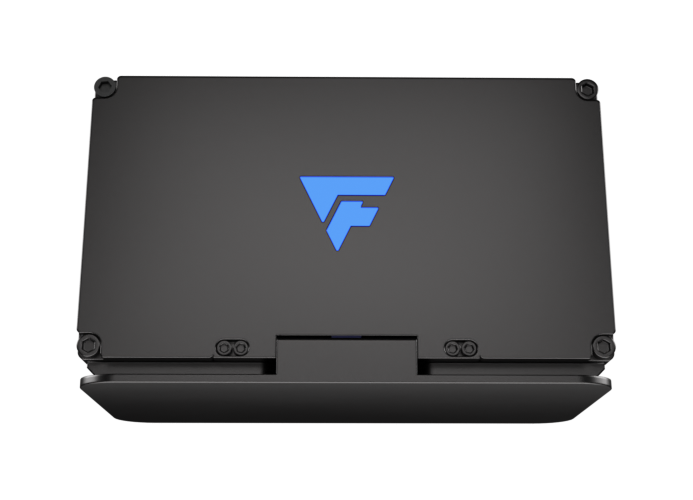

Epic Eye Pixel Welding
DLP monocular structured light industrial 3D camera
Functional advantages :
Epic Eye Pixel Welding offers a mature SDK interface, supporting integration with third - party vision software such as Halcon. This enables partners and developers to apply it flexibly and conduct secondary development with ease.
Point Cloud
Industry-leading Point Cloud Quality

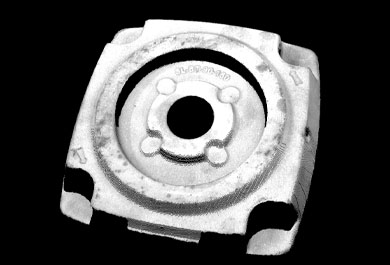

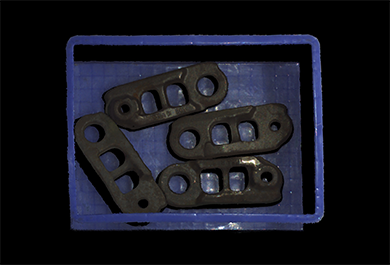

Non-standard Parts

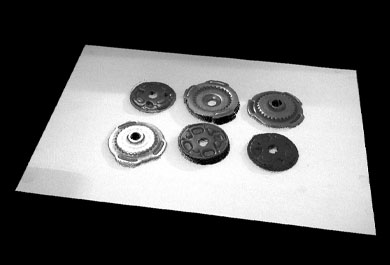

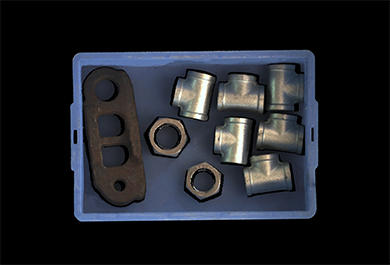

Metal Parts With Varying Brightness

Metal parts with text

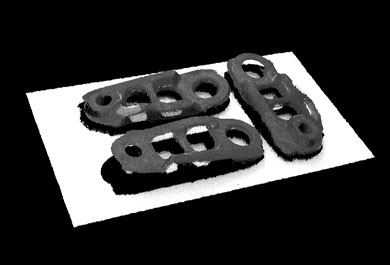

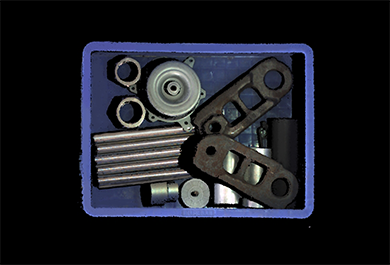

Metal Parts of Various Sizes and Shapes

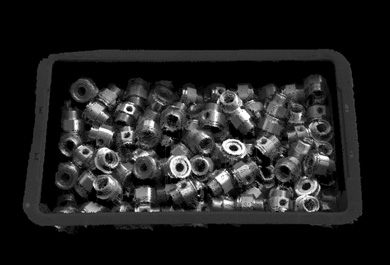

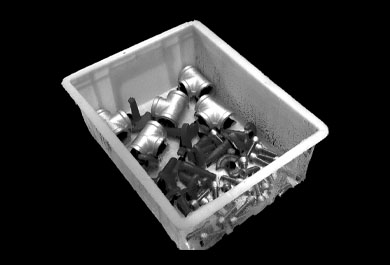

Disordered components and parts

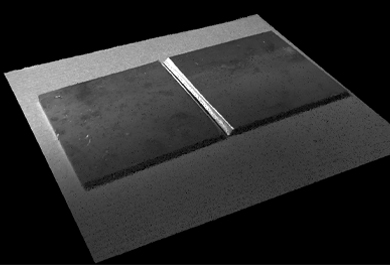

V - grooves of adjacent flat steel plates

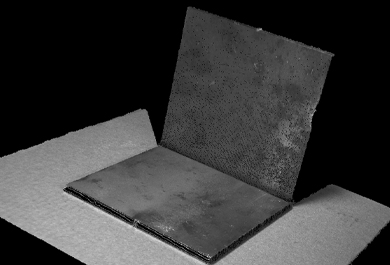

Point cloud diagram at the connection of the folded surfaces of steel plates

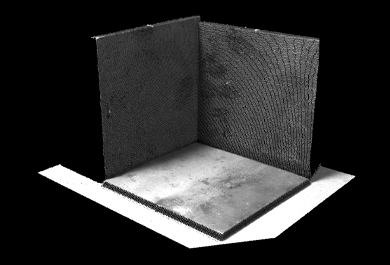

Point cloud diagram at the edge of the vertical surface angle

Data Download
Driven by Powerful Technology to Serve Our Customers
Epic Eye Pixel Welding Datasheet

Data Sheet
Building Industrial-Grade Standardized Products
Baseline /mm
85
Optimal Working Distance /mm
300-700
Near FOV /mm
295x175@0.3m
Far FOV /mm
670x390@0.7m
Megapixels
1.6 MP
Precision /mm
0.1mm@0.5m
Accuracy Error
<0.15%
Typical Imaging Time
0.2s~0.7s
Power Supply
24V DC/2.5A
Dimensions /mm
130 x71.5x79.5
Communication Interface
Ethernet
Light Source
LED
2D camera
Balck and White
Operating Temperature
0 ~ 50 ℃
Operating Humidity
20% to 90%RH Non-condensing
Storage
-20~70℃, 20%~90%RH no condensation
IP Rate
IP65
Cooling
passivity

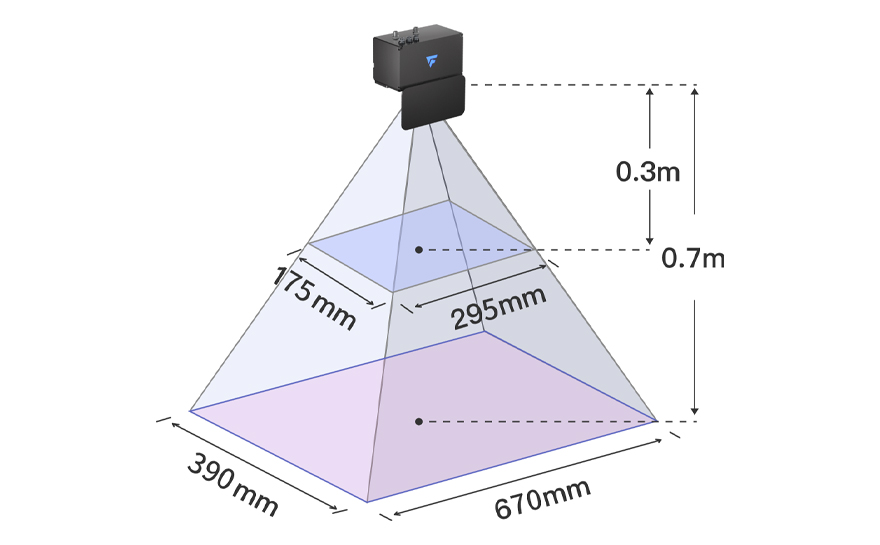

COV
Cone of vision (mm)
