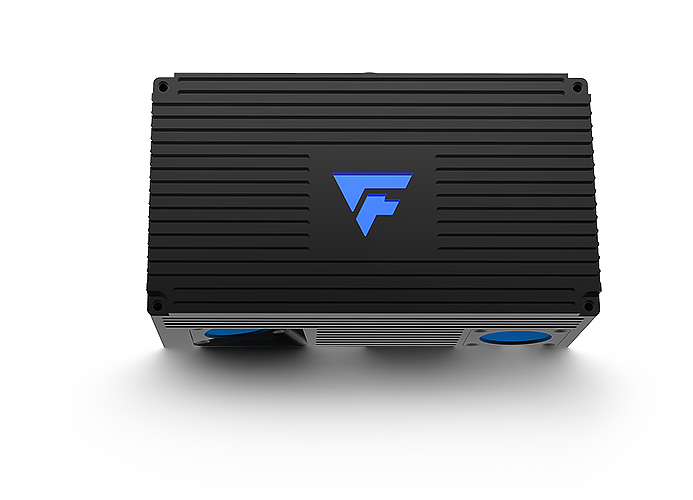

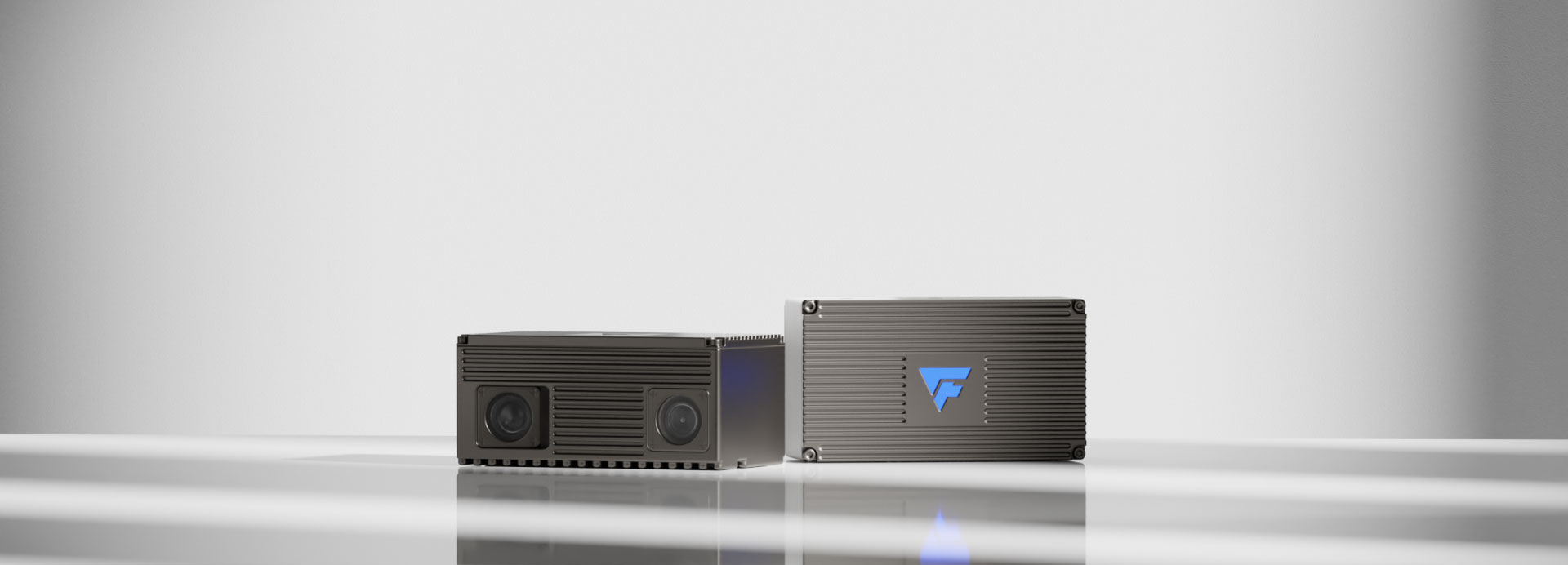

Epic Eye Pixel Mini

Epic Eye Pixel Mini

DLP monocular structured light industrial 3D camera

Functional advantages :
The Epic Eye Pixel Mini is an ultra-compact industrial 3D camera designed specifically for collaborative robots. Utilizing blue stripe structured light, it sets a new benchmark among similar products with its compact size, lightweight build, high precision, fast imaging, and cost-effectiveness.


  • Epic Eye Pixel Mini
  • Epic Eye Pixel Mini
Data Download

Driven by Powerful Technology to Serve Our Customers

Pixel Mini Datasheet

Data Sheet

Building Industrial-Grade Standardized Products

Baseline /mm
85
Optimal Working Distance /mm
300-700.
Near FOV /mm
295x175@0.3m
Far FOV /mm
670x390@0.7m
Megapixels
1.6 MP
Precision /mm
0.1mm@0.5m
Accuracy error
<0.15%
Typical imaging time /s
0.2s~0.7s
Power Supply
24VDC/3.75A
Dimensions /mm
130 * 59 * 73
Communication interface
Ethernet
Light Source
Blue (450nm) laser
2D camera
Black and white
Operating Temperature
-10~45℃
Operating Humidity
20% to 90%RH Non-condensing
Storage
-20~70℃, 20%~90%RH no condensation
IP Rate
IP65
Cooling
passivity
COV

Cone of vision (mm)

Solutions

Empowering Automation in Global

Industrial Manufacturing and Warehousing Logistics

  • Depalletizing
    Depalletizing

    Applicable Scenarios: Inbound depalletizing; outbound depalletizing; parcel sorting

    Learn more

  • Assembly
    Assembly

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more

  • Machine Tending
    Machine Tending

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more

  • Bin Picking
    Bin Picking

    Applicable Scenarios: Loading and unloading in machining production lines; seamless handling

    Learn more
