As intelligent manufacturing continues to advance, 3D vision technology has become a core enabler of industrial automation. In industries such as automotive parts and construction machinery, loading and unloading operations have long faced challenges including limited accuracy, low efficiency, and high costs. Enabling robots to “see accurately, pick reliably, and place precisely” has become key to upgrading production lines.
In accumulator handling applications, how can 3D vision address both accuracy and efficiency challenges? This article provides an analysis based on real test data.
Pain Points
As a core component in hydraulic systems, accumulators come in various specifications, with significant differences in length and weight. Traditional manual loading and unloading faces three major challenges:
Inconsistent accuracy:
Manual positioning introduces large deviations, affecting downstream processing and causing fluctuations in product quality.
Limited efficiency:
Slow cycle times restrict daily throughput and cannot keep up with automated production line requirements.
High operational costs:
Repetitive, high-frequency tasks increase overall production costs and highlight the need for automation.
When dealing with multiple specifications and different shapes (such as arc-sealed and open-ended accumulators), traditional 2D vision systems struggle to achieve stable recognition. A high-precision, robust, and easy-to-deploy 3D vision solution is therefore required.
Application Case
Industry & Scenario
Industry: Automotive Parts
Application: Accumulator Loading and Unloading
Challenges: Multiple workpiece specifications, reflective surfaces, varying lighting conditions, and high accuracy requirements
Solution

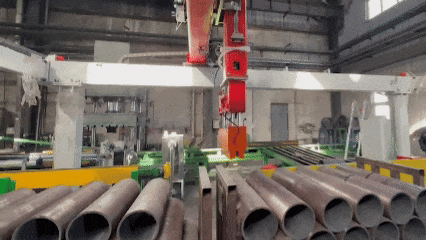

This project adopts Transfer Technology’s Epic Eye Laser L V2S 3D industrial camera, mounted on the end of a four-axis gantry robot in an “eye-in-hand” configuration. Combined with the in-house developed Epic Pro vision software, the system enables full automation of recognition, positioning, and picking.
Core Configuration:
3D Camera:
Epic Eye Laser L V2S, utilizing laser galvanometer scanning technology (blue laser source). The laser line is dynamically projected onto the object surface via a high-speed galvanometer, while stereo vision calculates depth, ensuring high accuracy and strong resistance to ambient light interference over long distances and large fields of view.
Vision Software:
Epic Pro, featuring a graphical interface with no programming required, and supporting multiple industrial communication protocols such as Modbus TCP.
Robot:
Four-axis gantry robot
The 3D camera projects laser lines onto the workpiece surface and captures reflected point cloud data to reconstruct the 3D contour of the accumulator in real time. Built-in AI matching algorithms within the vision software automatically identify the workpiece pose, calculate optimal picking coordinates, and transmit the data to the gantry robot via industrial communication protocols, guiding precise picking and placement.
The entire process requires no manual intervention and supports automatic recognition and switching between multiple workpiece specifications.
Key Highlights
High Precision with Sub-Millimeter Accuracy

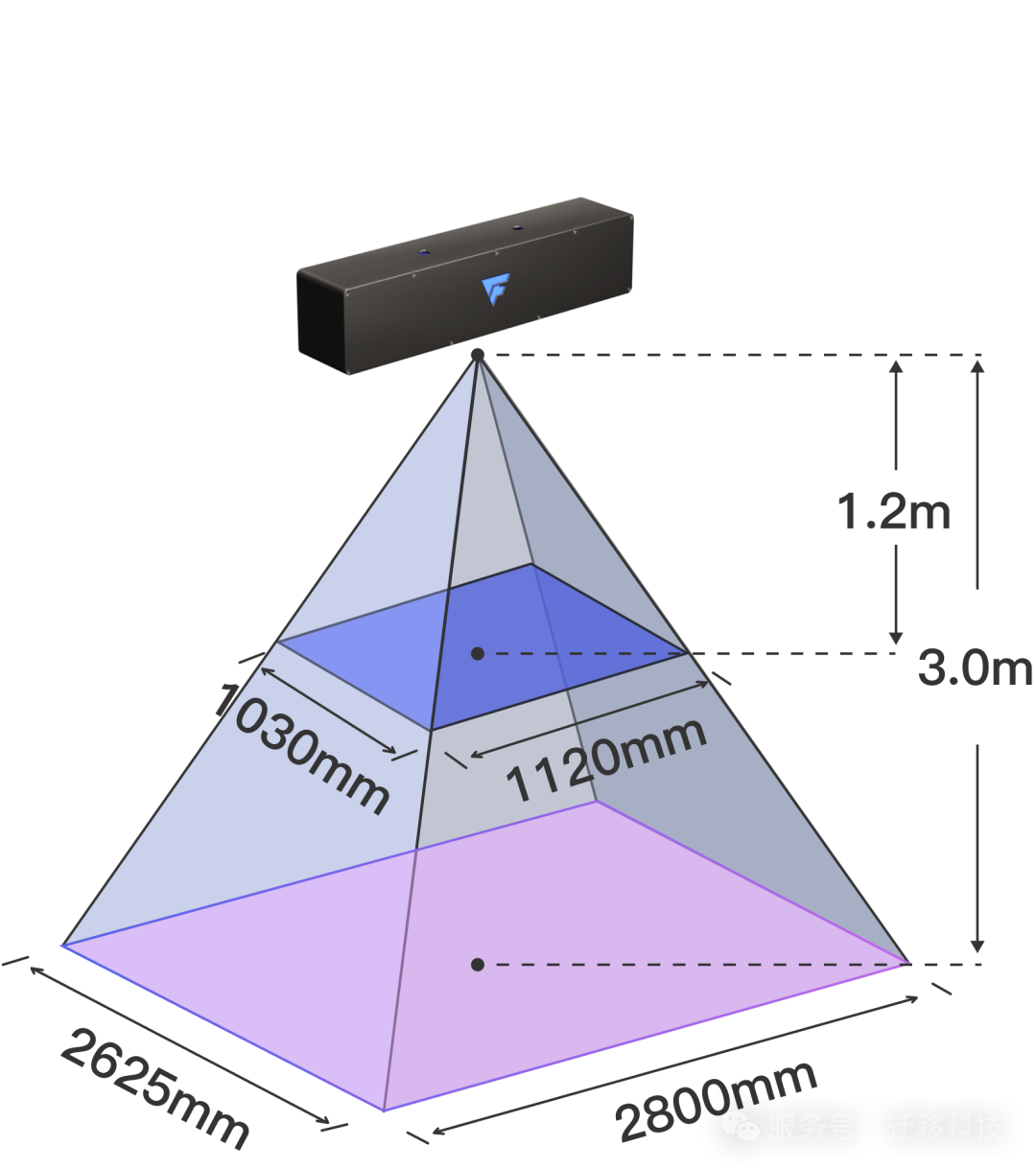

The Epic Eye Laser L V2S achieves a Z-axis single-point accuracy of up to 0.15 mm @ 2.4 m. Combined with advanced hand-eye calibration algorithms, the system maintains ±0.7 mm recognition accuracy even for workpieces up to 1850 mm in length, meeting high-precision assembly requirements.
Strong Resistance to Interference for Harsh Environments
The blue laser source effectively suppresses ambient light interference, while the IP65 protection rating ensures reliable operation in environments with dust and oil contamination.
Ease of Use for Fast Deployment and Changeover
Epic Pro requires no programming and features a workflow-based configuration, enabling rapid onboarding of new products. Advanced calibration algorithms significantly reduce hand-eye calibration time, while on-site data collection supports fast expansion to new product models.
Compatibility with Multiple Specifications for Flexible Production
In this project, a single vision system supports more than five accumulator specifications without hardware adjustments. The system automatically adapts through algorithms, enabling true “one-click” changeover.
From accumulator handling to a broader range of industrial applications, 3D vision technology is reshaping the fundamentals of manufacturing, enabling robots not only to operate, but also to perceive, analyze, and adapt.
In this case, Transfer Technology’s 3D vision system met high-performance standards defined by technical specifications and successfully passed on-site validation, providing a replicable model for automation upgrades in industries such as automotive components and construction machinery.
Beyond loading and unloading applications, the Epic Eye series 3D cameras and Epic Pro vision software are also widely applicable in scenarios such as depalletizing and palletizing, positioning and assembly, bin picking, and precision measurement and inspection.
